DVR Key features:
. Support 4CH/8CH 1080N definition encoding

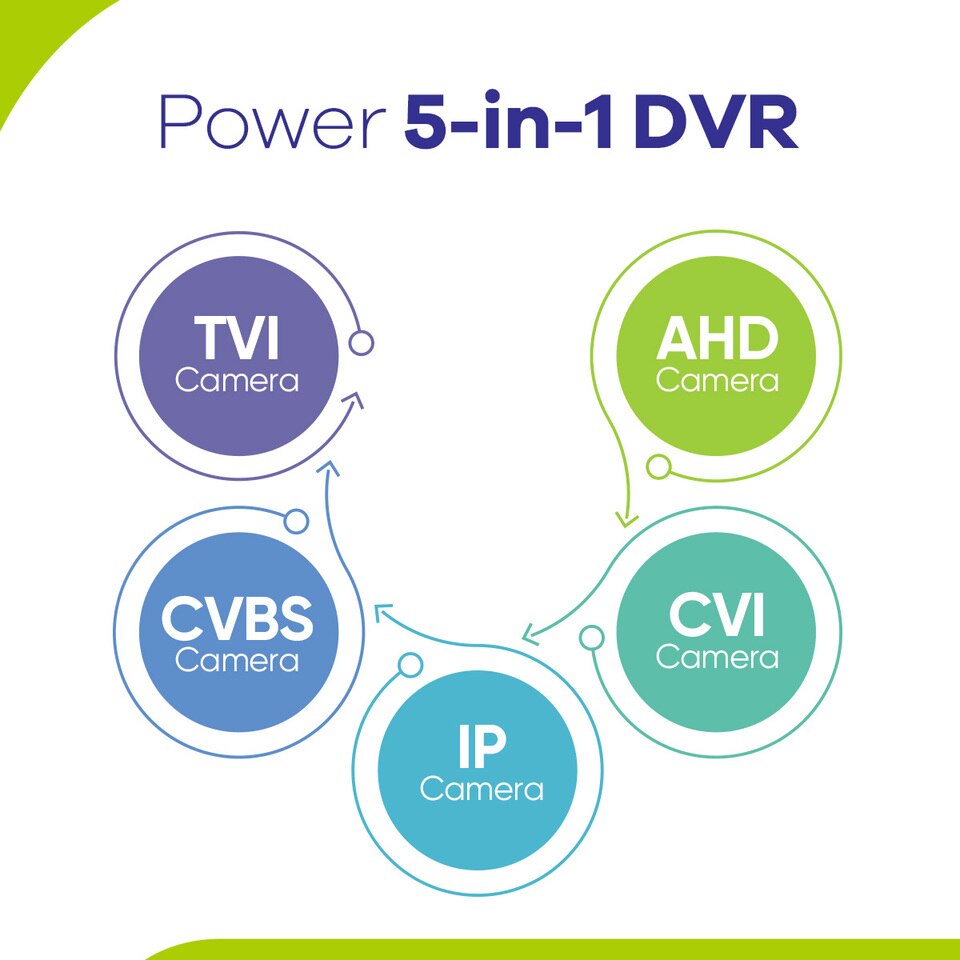

. Support AHD, TVI,CVI, CVBS, IP video input
. HDMI/VGA simultaneous video output
. 1 SATA (Up to 8TB)
. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
. Automatic networking support, a key to add equipment
. Support alarm information push to phone
. Support remote access, support ARSP
. Mobile phone remote monitoring (iOS, Android)
. Support Multi browser access，VMS PC client
HD Camera Key features :
★ AHD 1080P high clarity bullet camera
★ Up to 30m night vision with 8pcs IR leds
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP65 Dust and Waterproof Rating
|

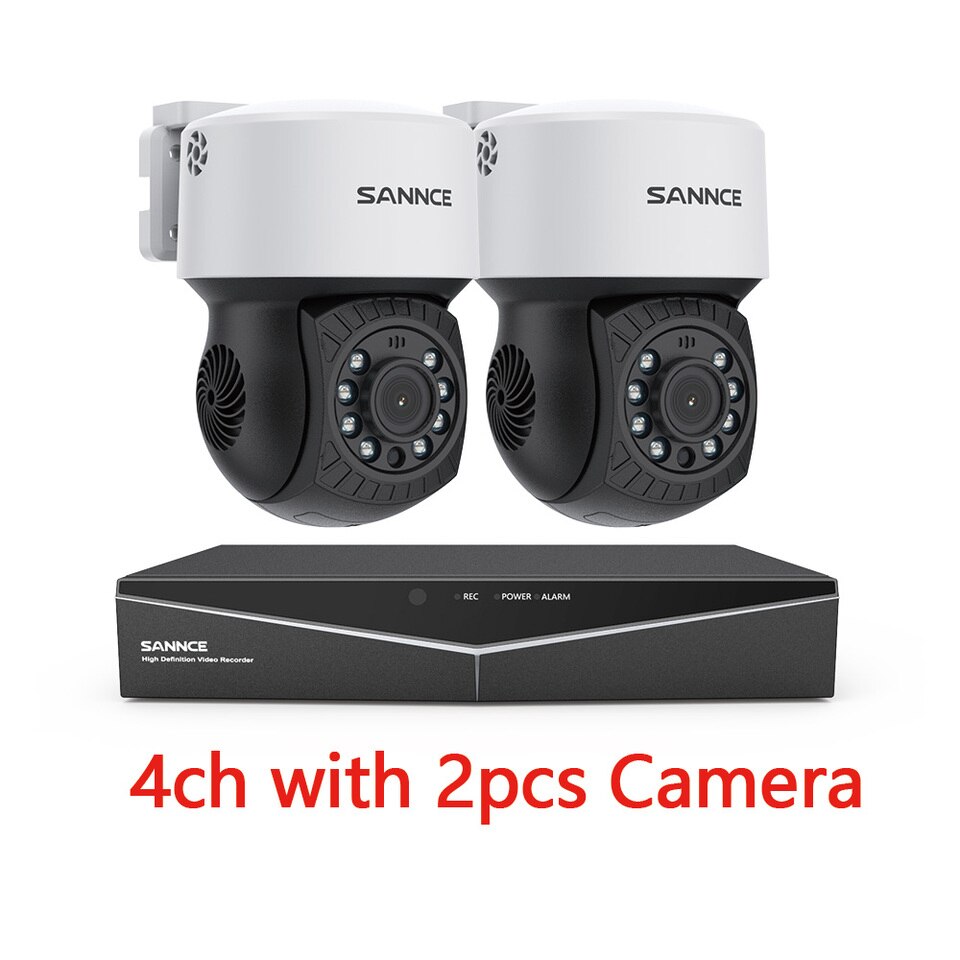

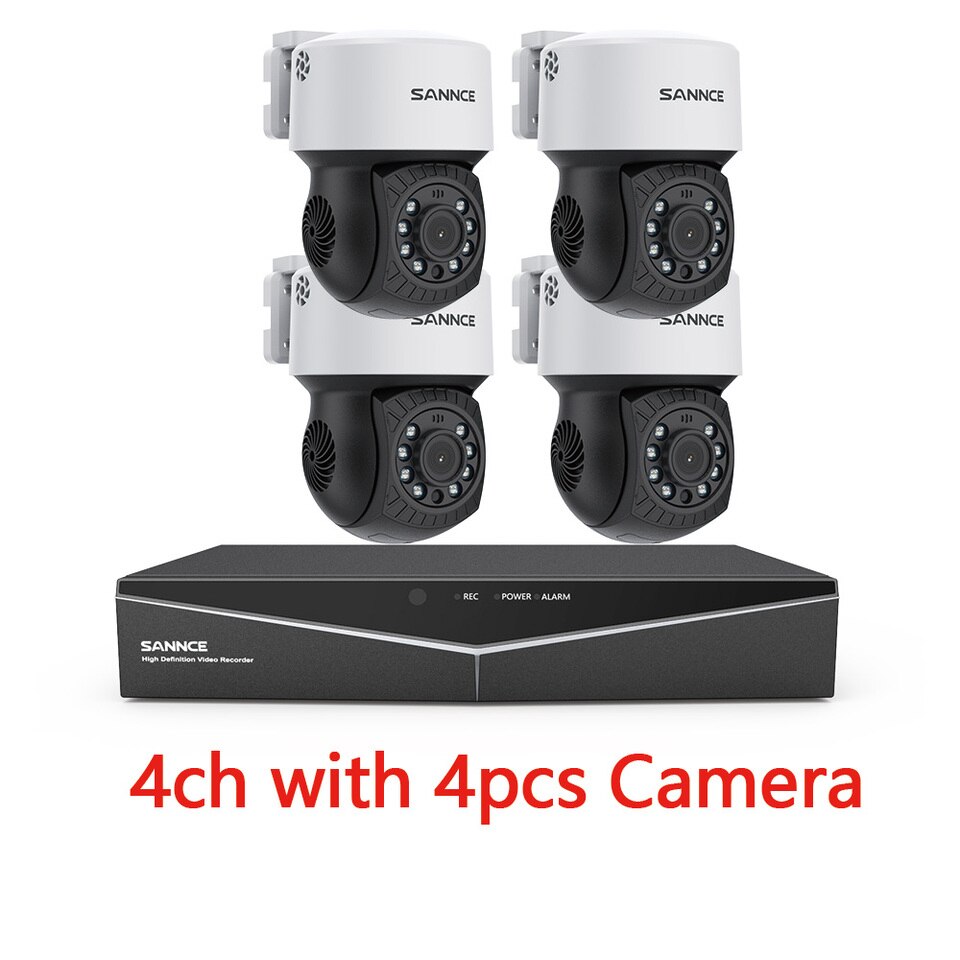

4CH DVR |
||
|
Video & Audio |
Codec |
H.264+ |
|
Video input |
4*BNC |
|
|
HDMI output |
1*HDMI (MAX:1080P) |
|
|
VGA output |
1*VGA (MAX:1080P) |
|
|
Audio I/O |
1/1 |
|
|
Encode |
4*1080N@15fps |
|
|
Decode |
4*1080N@15fps |
|
|
Multi-mode |
Analog: 4*1080N@15fps; |
|
|
Hybird: 4*1080N@15fps(analog)+2*1080P |
||
|
IP: 8*1080P；4*5MP |
||
|
Playback |
4CH (Analog mode) |
|
|
Compression |
G.711a |
|
|
Intercom |
Support |
|
|
Hard Drive |
HDD |
1*SATA interface |
|
HDD Capacity |
Up to 8TB Capacity |
|
|
Management |
Record mode |
Manual>Motion detection>Schedule |
|
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
|
|
Storage mode |
Sata HDD |
|
|
Backup |
Network, USB storage |
|
|
External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
|
Alarm I/O |
/ |
|
|
PTZ control |
/ |
|
|
USB Port |
2*USB2.0 ports |
|
|
General |
Power supply |
12V/2A |
|
Consumption |
<10W(Without HDD） |
|
|
Temperature |
0℃– + 55℃ |
|
|
Humidity |
10% -90% RH |
|
|
Dimension |
255(L)* 236mm(W)* 44mm(H) |
|
|
Weight |
Around 1KG |
|
|

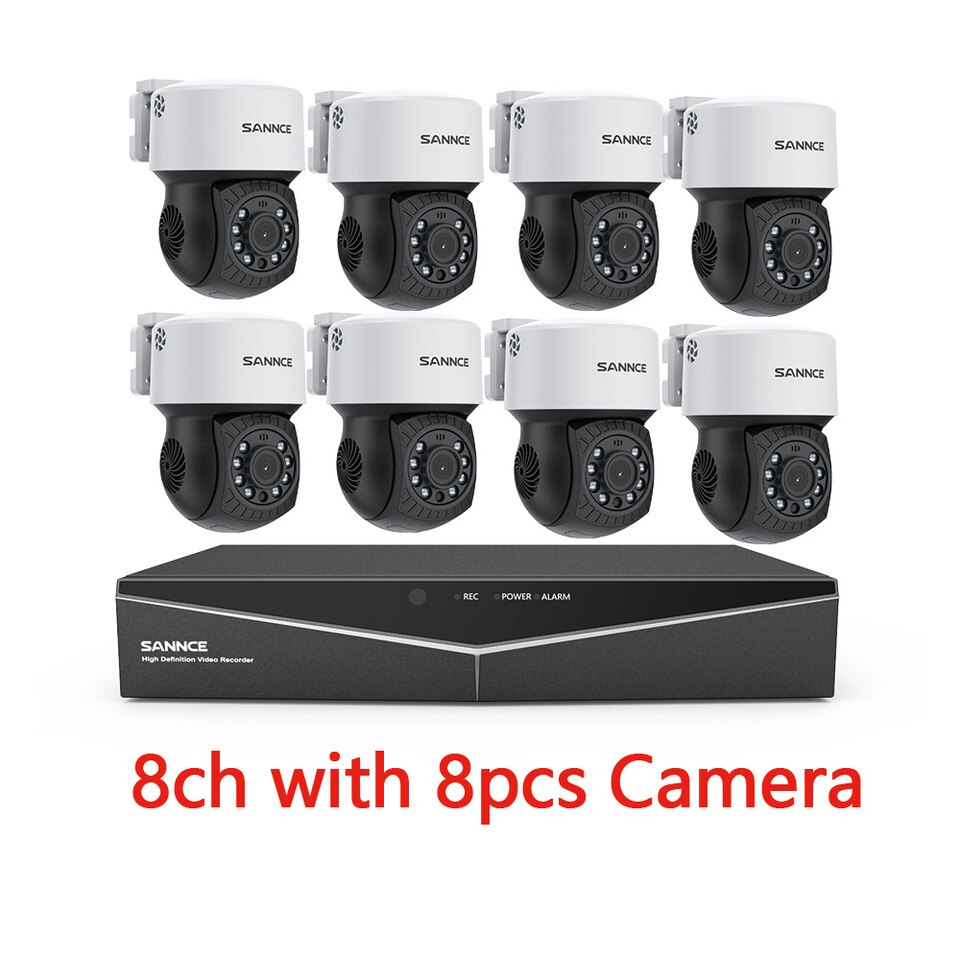

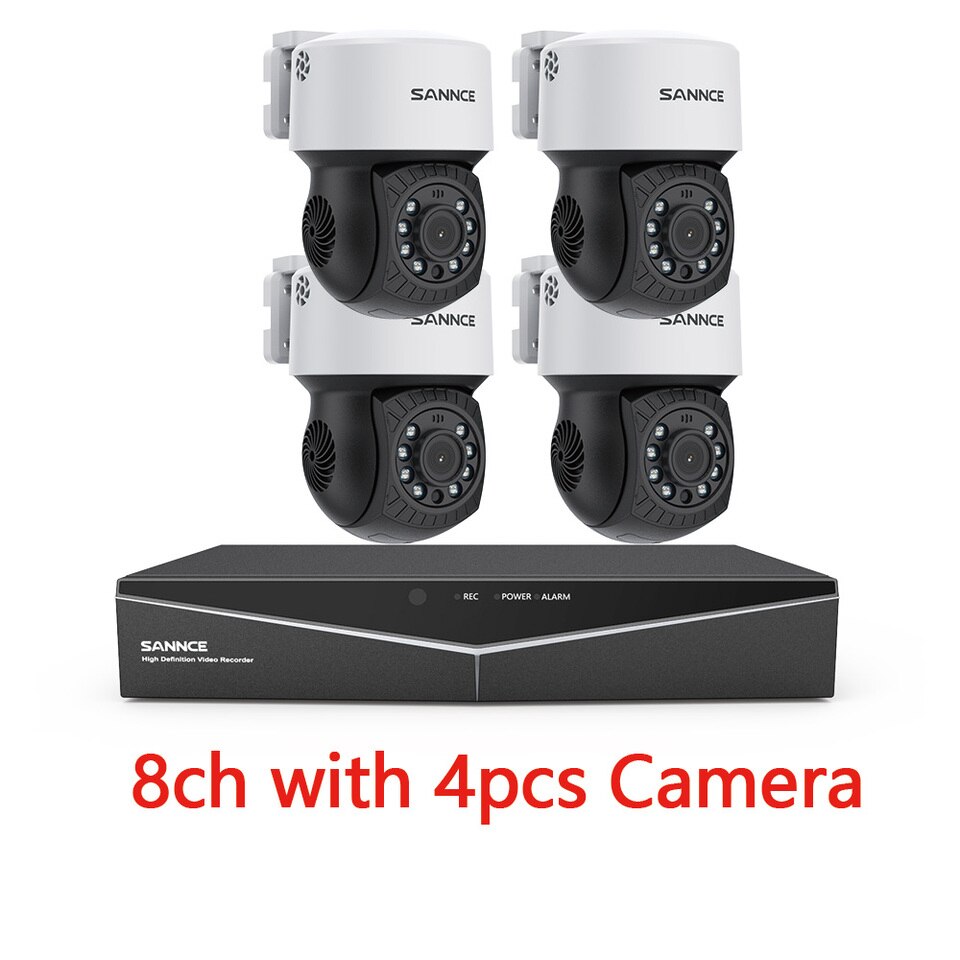

8CH DVR |
||
|
Video & Audio |
Codec |
H.264+ |
|
Video input |
8*BNC |
|
|
HDMI output |
1*HDMI (MAX:1080P) |
|
|
VGA output |
1*VGA (MAX:1080P) |
|
|
Audio I/O |
1/1 |
|
|
Encode |
8*1080N@15fps |
|
|
Decode |
4*1080N@15fps |
|
|
Multi-mode |
Analog: 8*1080N@15fps;4*5M-N(21fps） |
|
|
Hybird: 8*1080N@15fps(analog)+2*1080P |
||
|
IP: 16*1080P；16*5MP |
||
|
Playback |
4CH (Analog mode) |
|
|
Compression |
G.711a |
|
|
Intercom |
Support |
|
|
Hard Drive |
HDD |
1*SATA interface |
|
HDD Capacity |
Up to 8TB Capacity |
|
|
Management |
Record mode |
Manual>Motion detection>Schedule |
|
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
|
|
Storage mode |
Sata HDD |
|
|
Backup |
Network, USB storage |
|
|
External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
|
Alarm I/O |
/ |
|
|
PTZ control |
/ |
|
|
USB Port |
2*USB2.0 ports |
|
|
General |
Power supply |
12V/2A |
|
Consumption |
<10W(Without HDD） |
|
|
Temperature |
0℃– + 55℃ |
|
|
Humidity |
10% -90% RH |
|
|
Dimension |
255(L)* 236mm(W)* 44mm(H) |
|
|
Weight |
Around 1KG |
|
|
HD Camera |
||
|
Camera |
Video Resolution |
HD 1080P |
|
Signal system |
PAL/NTSC |
|
|
Image sensor |
Progressive Scan CMOS |
|
|
Lens |
3.6mm |
|
|
Min.Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
|
|
Horizontal rotation angle |
350° |
|
|
Vertical rotation angle |
90° |
|
|
Number of Infra-Red LEDs |
8 |
|
|
Night Vision Distance |
Up to 100ft/30m |
|
|
DNR |
DNR |
|
|
Wide Dynamic Range |
Digital WDR |
|
|
IR Cut Filter |
Yes |
|
|
Video Output |
HD BNCx1 |
|
|
General |
Housing |
Plastic |
|
Operating Power |
DC12V |
|
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP65 |
|
|
Weight |
0.57lbs / 260g |
|
