Feature
1. Automatic infrared night vision
2. Mobile monitoring app notification
3.400 mA battery, 1.5 hours of long-term use, can be recorded while charging
4. WIFI link remote monitoring
5. SD card local storage
Material: ABS
Battery: 400 mA
Charging duration: 1 hour
Usage time: 1.5 hours
Pixel: 1 million
Operating System Lite OS
Number of online users: 2 users watch online at the same time
Processor BK7252
Image sensor 1/4 inch CMOS sensor
Minimum illumination 0.3~0.5Lux (color mode), 0Lux (black and white mode)
Lens 0309 integrated module
Visual angle 90 ° diagonal
Automatic photosensitive switching of night vision lens, 6 940nm patch infrared lamps, irradiation distance 3-5 meters
Compression standard AVI
Multi code stream 1080P@30fps + VGA@30fps + 360P@4fps JPEG capture
Two rate control modes, CBR/VBR, with an output rate range of 128 to 4096kbps
Image adjustment brightness, contrast, saturation, and chroma are adjustable
Input built-in – 38dB microphone
Output None
Sampling frequency/bit width 8KHz/16bit
Compression standard/bit rate ADPCM/32kbps
Network protocols TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, etc
Wireless Network IEEE802.11b/g/n
Wireless frequency 2.4~2.4835GHz
Wireless Security Encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK Data Encryption
Wireless connection AP hotspot mode
Button 1 switch on/off
Button 2 Reset Key
Storage function supports T-Flash cards (up to 64GB)
Alarm detection supports motion detection
Rated voltage DC5V ± 5%
Power consumption operation 155mA“

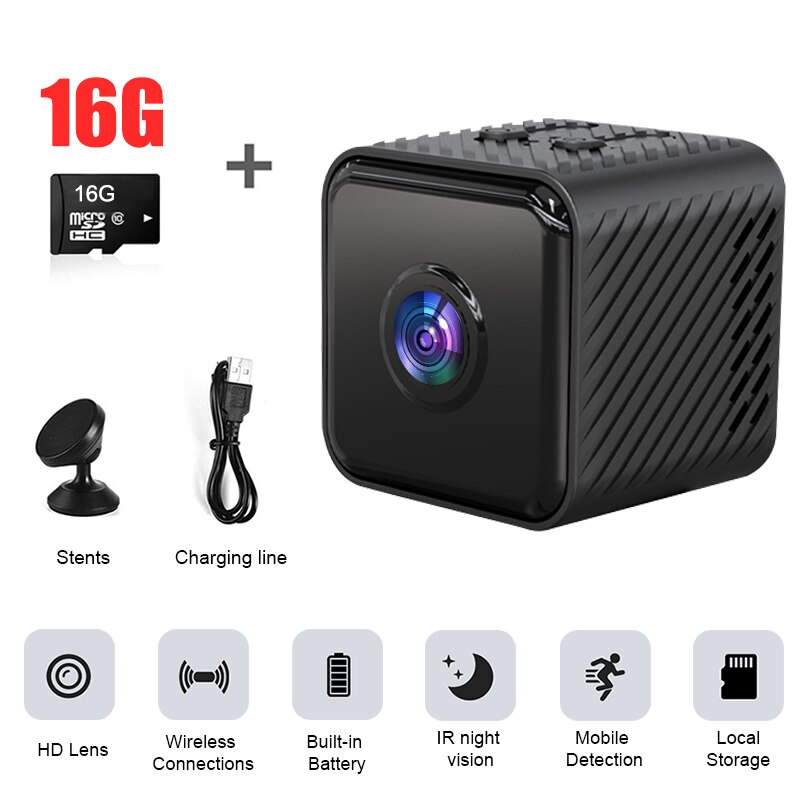

Package List
Camera * 1
Power cord * 1
Bracket * 1
Instructions * 1
